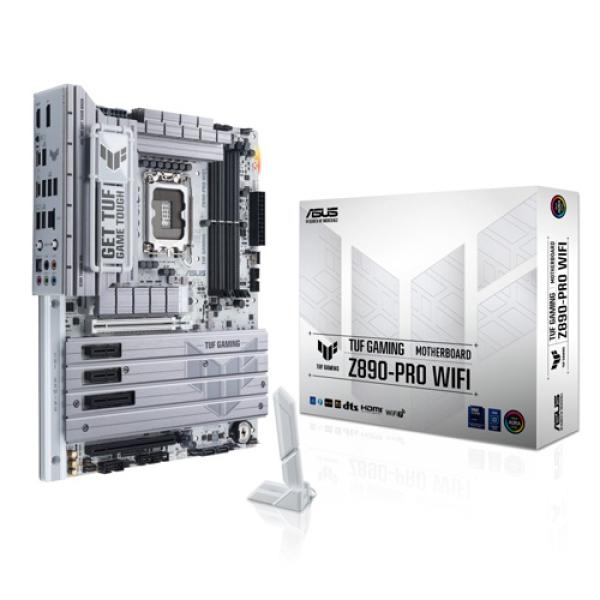

TUF Gaming Z890 PRO WIFI



TUF Gaming Z890 PRO WIFI

CPU:
  • Support Intel Core Ultra Processors (Series 2), LGA1851
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset:
  • Intel Z890 Chipset
Memory:
  • 4 x DIMM slots, max. 192GB, DDR5
  • Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)
  • Dual channel memory architecture
  • DIMM Fit
  • Supports Intel Extreme Memory Profile (XMP) memory module
  • ASUS Enhanced Memory Profile III(AEMPIII)
Graphics:
  • 1 x DisplayPort
  • 1 x HDMI port
  • 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort and Thunderbolt video outputs
Expansion Slots:
  • Intel Core Ultra Processors(Series 2)
  • 1 x PCIe 5.0 x16 slot
  • Intel Z890 Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slot
  • 2 x PCIe 4.0 x1 slots
Storage:
  • Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
  • Intel Core Ultra Processors(Series 2)
  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset:
  • M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
Ethernet:
  • 1 x Intel 2.5Gb Ethernet
  • TUF LANGuard
Wireless & Bluetooth:
  • Wi-Fi 7
  • 2x2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  • Bluetooth v5.4
  • Wi-Fi features may vary depending on the operating system
  • For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
  • For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
USB:
Rear USB (Total 8 ports):
  • 2 x Thunderbolt 4 ports (2 x USB Type-C)
  • 6 x USB 10Gbps ports (6 x Type-A)
  • Front USB (Total 7 ports):
  • 1 x USB 20Gbps (supports USB Type-C with up to 30W PD/PPS Fast-charge )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
  • USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio:
  • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
  • - Impedance sense for front and rear headphone outputs
  • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
  • - Supports up to 32-Bit/192 kHz playback
  • Audio Features: Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit
Back Panel I/O Ports:
  • 2 x Thunderbolt 4 USB Type-C ports
  • 6 x USB 10Gbps ports (6 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Wi-Fi module
  • 1 x Intel 2.5Gb Ethernet port
  • 5 x Audio jacks
  • 1 x Optical S/PDIF out port
  • 1 x BIOS FlashBack button
Internal I/O Connectors:
Fan and Cooling Related:
  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers
Power Related:
  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors
Storage Related:
  • 4 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
USB:
  • 1 x USB 20Gbps connector (supports USB Type-C )
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous:
  • 3 x Addressable RGB Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x Chassis Intrusion header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x 10-1 pin Front System Panel header
  • 1 x Thermal Sensor header
  • 1 x Thunderbolt (USB4) header
  • BIOS:256 Mb Flash ROM, UEFI AMI BIOS
  • Manageability:WOL by PME, PXE
Accessories:
  • Cables:2 x SATA 6Gb/s cables
Miscellaneous:
  • 1 x ASUS WiFi Q-Antenna
  • 1 x M.2 Q-Slide package
  • 2 x M.2 rubber packages
  • 1 x Screw package for M.2 SSD
  • 1 x TUF GAMING sticker
  • 1 x TUF GAMING removable nameplate
  • Documentation:1 x Quick start guide
  • Operating System:Windows 11  (22H2 & later)
Form Factor:
  • ATX Form Factor:12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
